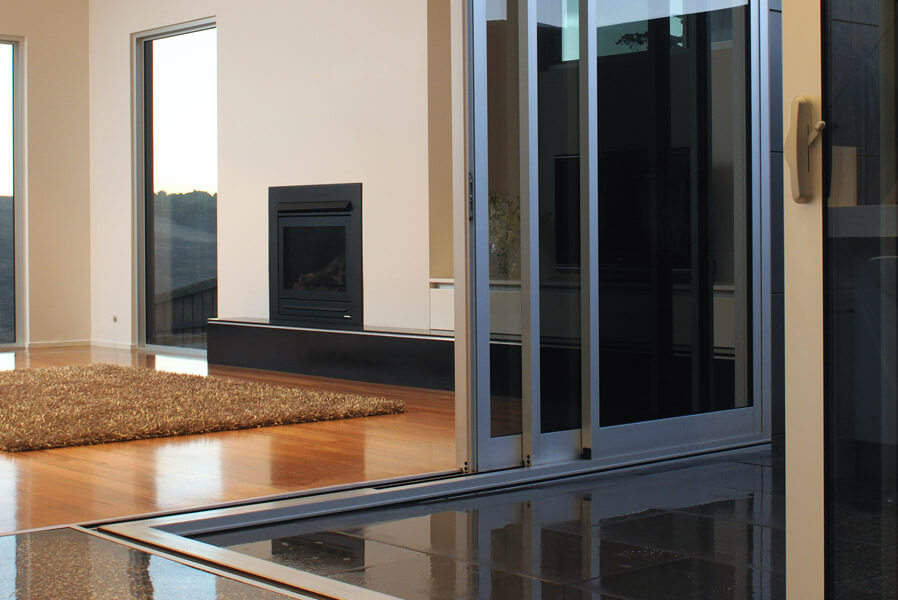

SlideMASTER™ Sliding Aluminium Door (External Sliding)

Architectural Series | Series 702

The Series 702 high performance sliding door has been tested for compliance with the relevant Australian Standards. Achieved a very high water resistance of >600Pa and complied with the air conditioning requirements of the standard.

Features & Benefits

  • The extra strong multi-hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas.
  • There are a large variety of sliding door combinations possible XXF, FXX, XF, FX, FXF, XFF, FFX, FXXF and FXXXXF. A 90º corner unit FX^XF and FXX^XXF also available.
  • These sliding doors are compatible with the high performance Series 406 / 606 and 426 / 626 FrontGLAZE™ framing.
  • Sliding doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock.
  • Series 702 sliding doors run on heavy duty double bogey wheel carriages.
  • Aluminium sub-sills are available and should be used in all installations.
  • Doors can be fitted with internal sliding or roller fly doors.
  • Series 702 sliding doors can be fitted with Centor S1E Eco Screen
Download Product Brochure View Wers Info

Product specifications

  • Maximum Panel Height* :3000mm
  • Maximum Panel Width* :1860mm
  • Maximum Glass Thickness :≤ 24mm
  • SHGC Range :0.15 - 0.59

Testing & Certification

  • Acoustics Tested & Certified
  • AS2047 Performance Tested
